Aksialvifte med ramme fremstilt av aluminium. Drives med 220–240 V AC. Støynivå: 43-46 dBA. Luftstrøm: 109-133 m³/t. Hastighet: 2000-2300 RPM. Tilkobles enklest med (36185). Mål: 120x120x25 mm.
Aksialvifte 230 V 120 mm
120 mm-aksialvifte
Artikkelnr: 36183
Type: Sunon DP201AT-2122HST.GN
Size (A x A x B): 120 x 120 x 25 mm
Bearing: sleeve
Voltage: 220-240 Vac (50-60Hz)

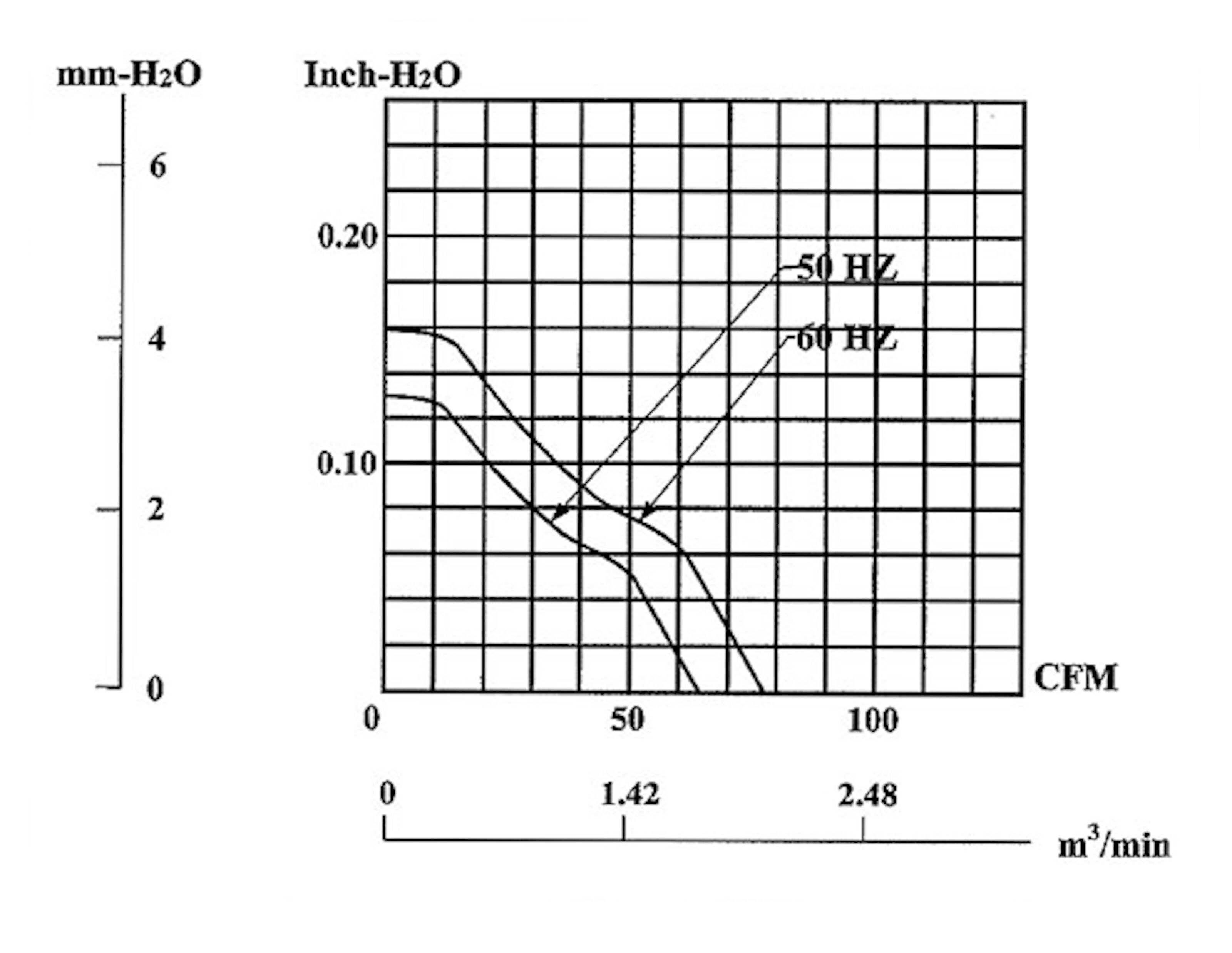

Airflow: 109 ~ 133 m³/hr
Current: 0.1-0.09 A
Speed: 2000-2300 rpm
Noise (at 1m): 43-46 dBA
Connection: terminal
Materials:
Blade: thermoplastic PBT (UL94-VO)
Frame: die-cast ALU
Dielectric strength: 1500 Vac for 2 seconds
Insulation resistance: 500 Vdc, 100 Mohm
Tolerance:
Speed: ± 5%
Airflow: ± 10%
Airflow: UL-recognised E77551, CSA-certified LR53000, VDE-approval 1350
Operating temperature:
Sleeve bearing: -10°C to +70°C
Ball bearing: -20°C to +80°C
